Non-leafing aluminium paste is widely used in metallic coatings where a uniform appearance, formulation flexibility, and compatibility with additional coating layers are important. Its performance depends not only on the pigment itself but also on the resin system, dispersion process, and application conditions.
Understanding how non-leafing aluminium paste behaves inside a paint film helps manufacturers select the right grade for their coating formulations and achieve consistent metallic effects.

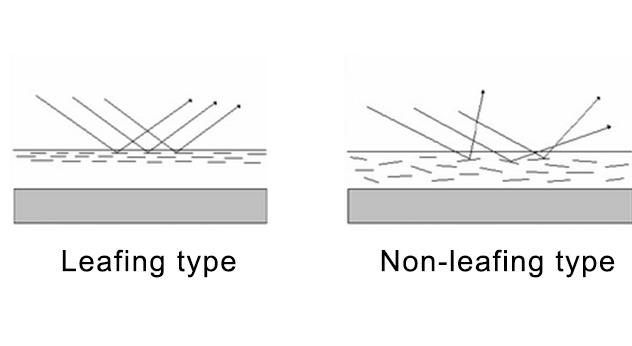

Non-leafing aluminium paste contains thin, flake-shaped aluminium particles that reflect light and create a metallic appearance. After incorporation into a suitable paint formulation, these flakes are generally distributed throughout the coating film rather than concentrating predominantly at its surface.
This distribution influences how the coating reflects light and interacts with other formulation components.
Several factors affect the final result:
Flake orientation: The alignment of aluminium flakes influences brightness, reflectivity, and visual uniformity.
Particle size distribution: Different particle sizes can produce different combinations of smoothness, coverage, and sparkle.
Pigment dispersion: Uniform distribution helps reduce visible agglomerates and uneven metallic effects.
Film formation: Resin properties, solvent evaporation, and curing conditions influence the final arrangement of the flakes.
A well-formulated coating allows the aluminium flakes to distribute consistently throughout the film, helping produce a controlled metallic appearance.
The distribution and orientation of aluminium flakes directly influence the appearance of a finished metallic coating.
When selecting non-leafing aluminium paste, manufacturers should consider the visual effect required by the application.
Uniform metallic appearance: Consistent dispersion helps minimize visible differences across the coated surface.
Brightness and gloss: Flake characteristics and orientation affect how efficiently light is reflected toward the observer.
Smoothness: Appropriate particle selection can help achieve a refined surface appearance.
Coverage: Pigment concentration, particle geometry, and dry film thickness all contribute to the final hiding performance.
A smaller particle size does not automatically guarantee higher brightness or better coverage. The most suitable grade depends on the balance between the desired metallic effect, substrate concealment, and application method.
For production approval, evaluate the coating through drawdown or spray tests under controlled conditions. The final appearance should be assessed at the intended film thickness and viewing angle.
Resin compatibility is essential when incorporating non-leafing aluminium paste into paint formulations. A suitable pigment grade must work with the binder and carrier system without causing unacceptable dispersion problems or changes in appearance.
Compatibility should be assessed in the context of the complete formulation.
Key considerations include:
Binder type: Check suitability for the intended acrylic, alkyd, polyurethane, epoxy, or other resin system.
Carrier compatibility: Confirm that the paste's carrier is appropriate for the formulation's solvent system.
Surface treatment: Select a grade with surface characteristics suited to the required chemical stability and coating performance.
Overcoating requirements: Where a clearcoat or additional paint layer is applied, evaluate intercoat adhesion and the performance of the complete coating system.
Storage stability: Check for excessive settling, hard sediment, or changes in appearance during storage.
Compatibility should not be assumed solely from the resin category. Even formulations using similar binders can behave differently because of variations in solvents, additives, pigment loading, and processing conditions.
Before full-scale production, conduct small-batch compatibility tests and verify the results after the coating has dried or cured.
Different applications place different demands on metallic appearance, coating performance, and manufacturing processes.
Application | Main requirements | Selection considerations |
|---|---|---|
Industrial coatings | Consistent metallic finish | Resin compatibility, dispersion, and appearance |
Automotive component coatings | Refined and uniform metallic effect | Flake orientation, color consistency, and application performance |
Plastic coatings | Decorative finish and substrate adhesion | Binder compatibility, dispersion, and adhesion testing |
Printing inks | Uniform metallic printing effect | Particle size, ink compatibility, and printability |
Decorative metal coatings | Desired brightness or sparkle | Particle characteristics, gloss, and visual effect |
For example, a coating for industrial equipment may prioritize consistent coverage and reliable production performance. A decorative plastic coating may place greater emphasis on smoothness, metallic brightness, and adhesion to the substrate.
The selected grade should be tested in the actual formulation and application process rather than chosen on particle size or appearance alone.
Even a suitable aluminium paste can produce inconsistent results if the incorporation and application processes are poorly controlled.
To improve formulation consistency:
Review the supplier's recommendations. Confirm the suitable resin system, carrier, and handling procedure.
Prepare the formulation carefully. Where appropriate, pre-mix the paste with a compatible portion of the formulation before adding it to the main batch.
Control mixing intensity. Avoid unnecessary high-shear processing that may damage aluminium flakes or alter the metallic effect.
Check dispersion quality. Look for agglomerates, uneven distribution, and other visible defects.
Test the finished coating. Evaluate metallic appearance, coverage, adhesion where relevant, and storage behavior under the intended conditions.
Processing parameters should be established through formulation trials and the supplier's technical guidance. There is no single mixing procedure suitable for every aluminium paste and paint system.
They are used in suitable industrial coatings, automotive component coatings, plastic coatings, printing inks, and decorative finishes where the required metallic appearance and formulation compatibility can be achieved.
Its flakes are generally distributed throughout the coating film rather than concentrating predominantly at the surface. However, actual distribution and orientation depend on the formulation, dispersion quality, application process, and film formation.
Possible causes include poor dispersion, unsuitable pigment selection, inconsistent film thickness, incompatible formulation components, and variations in application conditions. Checking the complete formulation and processing procedure can help identify the cause.
Prepare a small-scale formulation using the intended binder and carrier system. Evaluate dispersion, appearance after curing, storage stability, and relevant coating properties before approving the grade for bulk production.
The performance of non-leafing aluminium paste depends on the interaction between aluminium flakes, the resin system, processing conditions, and the final coating requirements. Understanding these factors helps manufacturers achieve consistent metallic appearance and improve formulation reliability.
